| Tên thương hiệu: | WONDERY |
| Số mô hình: | WDL-LG-1700 |
| MOQ: | 1 bộ |
| giá bán: | negotiable |
| Thời gian giao hàng: | 60 ngày |
| Điều khoản thanh toán: | L/C, T/T |

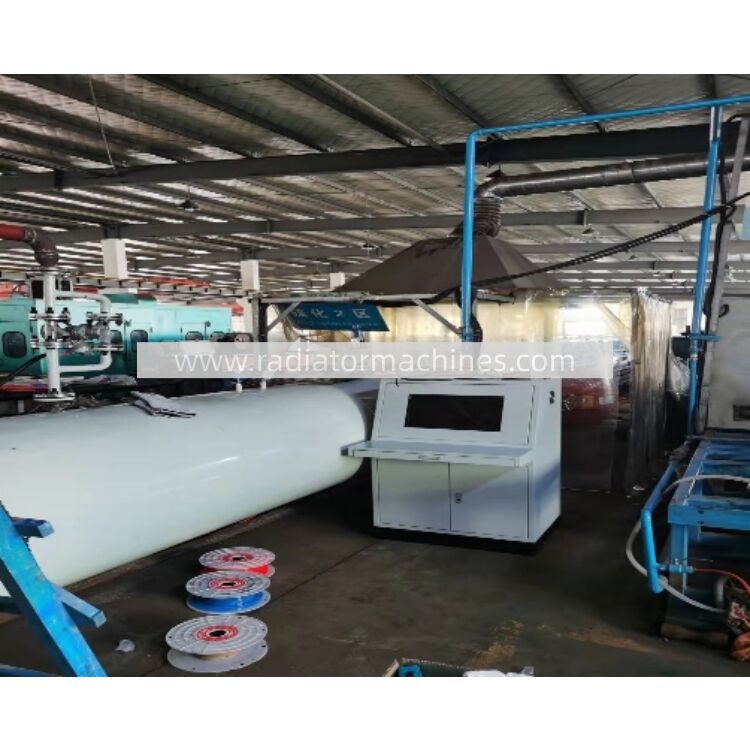

High-Pressure Electric Steam Vulcanizing Tank Φ1700x4000mm | Q345R Pressure Vessel | WUXI WONDERY
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. proudly presents the WDL-LG-1700 Electric Steam Vulcanizing Tank, a premium solution designed for the efficient and reliable vulcanization of large-scale rubber products. Engineered with an effective size of Φ1700mm x 4000mm, this industrial vulcanizer is built to meet the rigorous demands of modern manufacturing, ensuring superior material properties and consistent output.
Constructed from high-strength Q345R steel (10mm thickness) , our rubber vulcanizing tank adheres to strict international standards like GB150-2011. The tank features a robust design pressure of 0.85 MPa and a maximum operating temperature of 180°C, making it ideal for a wide range of vulcanization processes. To guarantee safety and longevity, the vessel includes advanced safety interlocks and a user-friendly manual quick-opening door, designed for effortless operation even with large diameters.
At the heart of this steam heating vulcanizer is an efficient bottom-mounted electric heating system (120KW total power, divided into 3 groups of 40KW) that rapidly generates steam to ensure temperature uniformity of ±1.5°C. Operation is simplified through a 7-inch touchscreen all-in-one control system. This intelligent interface, paired with high-precision sensors (including options from Swiss HUBA), enables fully automatic control of temperature and pressure, with storage for up to 10 customizable process recipes.
To enhance workflow, the WUXI WONDERY vulcanizing tank supports integration with material carts and remote-controlled traction systems, streamlining the loading and unloading of heavy materials. The tank body is fully insulated with 50mm aluminum silicate to minimize heat loss, ensuring energy efficiency and workplace safety. Whether you are in the rubber, composite, or plastics industry, this automatic pressure vessel from WUXI WONDERY delivers unmatched performance and durability.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | WDL-LG-1700 |
| Effective Size (Dia. x L) | Φ1700mm x 4000mm |
| Design Pressure | 0.85 MPa |
| Design Temperature | 180 °C |
| Temperature Uniformity | ± 1.5 ℃ |
| Container Material | Q345R (16MnR), Thickness 10mm |
| Heating Mode | Electric Steam Heating (Bottom Mounted) |
| Heating Power | 120KW (40KW x 3 Groups) |
| Control System | 7-inch Touchscreen All-in-One PLC (Siemens Module) |
| Door Opening Mode | Manual Quick-Opening (Electro-hydraulic optional) |
| Key Options | Imported Sensors (Jumo/HUBA), Remote Tractor, PLC Control |
