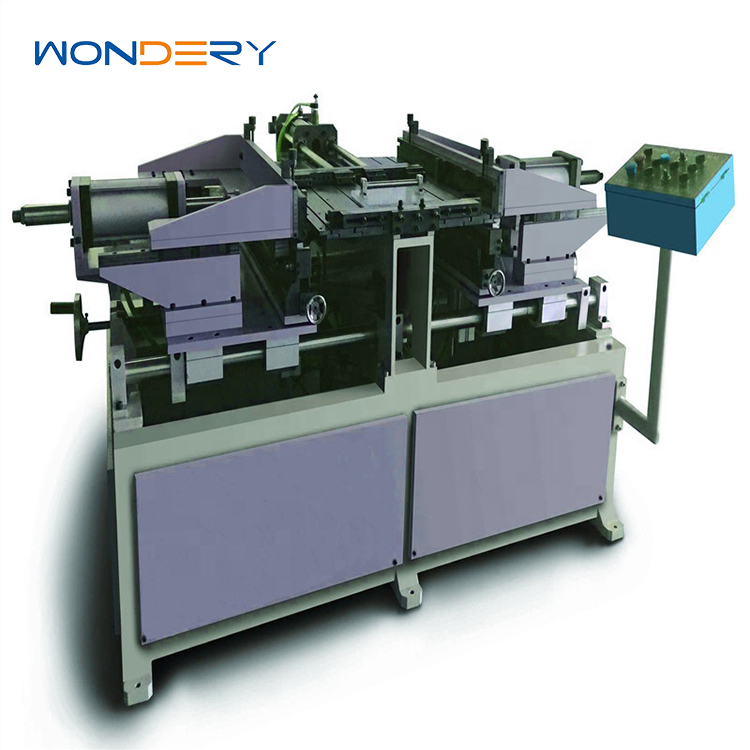

WONDERY Semi-Automatic Radiator Core Builder Machine 1500kg

Name: WONDERY Semi-Automatic Radiator Core Builder Machine 1500kg
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 25.00 USD
Availability: InStock

Tên thương hiệu:	WONDERY
MOQ:	1
giá bán:	$15,000-35,000

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc:

Jiangsu, Trung Quốc

Cân nặng:

1500kg

Các thành phần cốt lõi:

PLC, động cơ, ổ trục, hộp số, động cơ, tàu áp suất, thiết bị, máy bơm

Áp suất khí nén:

0,6MPa

Khoảng cách tiêu đề:

300-800mm

Chiều dài tiêu đề:

300-680mm

chiều rộng vây:

16, 18, 20, 24, 26, 32mm

Chiều cao vây:

8 mm

Độ dày ống phẳng:

2 mm

Chiều rộng ống phẳng:

16,22,26mm

Khoảng cách ống phẳng:

10 mm

Lớp ống phẳng:

1-2 lớp

Tổng năng lượng:

0,5kW

Thời gian lắp ráp:

3,5 phút mỗi lõi

Kích thước máy:

2200mm × 2050mm × 1300mm (L, W, H)

Thành phần điện:

Thương hiệu Schneider

Làm nổi bật:

semi-automatic radiator core builder

1500kg radiator fin machine

radiator core machine with warranty

Mô tả sản phẩm

Wondery Hot Selling Semi-automatic Aluminum Radiators Core Builder Machine

Semi-automatic Aluminum Radiators Core Builder Machine From WONDERY WONDERY Semi-Automatic Radiator Core Builder Machine 1500kg 0

Product Application

The radiator core builder machine is used for assembling auto radiator cores. The core builder machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled core has a high assembling accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.

Technical Specifications

Parameters of Cores to be Assembled
Header-to-header distance	300-800 mm; header length: 300-680mm
Fin width	16, 18, 20, 24, 26, 32mm
Fin height	8mm (fixed value)
Flat tube thickness	2mm
Flat tube width	16, 22, 26mm
Header width	Decided by the customer

Machine Parameters
Radiator core assembled per time	1 piece
Center-to-center distance for flat tube	10mm (fixed value)
Flat tube layer	1-2 layer
Total power	About 0.5kw
Assembling time per core	About 3.5 minutes per core
Equipment weight	1.5T
Equipment dimensions (L×W×H)	2200 mm × 2050 mm × 1300 mm

Key Advantages

The flat tubes are distributed through a servo tube distribution device. The overall comb teeth structure ensures flat tube positioning accuracy.
Designed with 2-hand push buttons for safe operation.
Easy to operate, adjust, and replace tooling.
Left and right push mechanism and clamping mechanism are controlled by hydraulic cylinders.
Can be equipped with header flaring mechanism.

Detailed Images

Tube Distribution Silo

The radiator core builder can be equipped with a tube distribution silo to improve operation efficiency.

Header Mold

We supply radiator core builders with 1-5 rows. The header mold is customized based on requirements. Flaring function is available.

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, and ship industry.

Our main products include:

Radiator making machines
Aluminum fin machine
Aluminum radiator core builder machine
Aluminum radiator plastic tank clinching machine
Aluminum radiator brazing furnace
Aluminum header pipe punching machine
Aluminum flat tube straightening and cutting machine
High speed fin press machine
Aluminum/copper pipe straightening and cutting machine
Tube expander machine
Automatic bending machine
Progressive fin die
Metal punching die

Established in 2008, we have extensive experience in development, design, quality control, and after-sales service. We provide technical consultation, installation, test-running, technical training, and maintenance services. We can also design non-standard products according to customer requirements.

Frequently Asked Questions

1. What is the power supply of the heat exchanger making machines?

The power supply is determined by the customer's requirements. We can adjust the power supply (voltage and phase) through a transformer or use the customer's voltage directly to ensure the machine is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation?

Customers should provide technical requirements, drawings, pictures, industrial voltage, planned output, and other relevant specifications.

3. What is the payment term?

Payment terms are 40% down payment and 60% before delivery (T/T mode).

4. What is the delivery time?

Delivery time is 30-60 days after receipt of down payment.
